Axis V4.2 windows : installation and setup

Here are instructions for the mounting and the adjustment of Axis windows V4.2
Read more >>







This article only applies to version 4.2 of Axis windows.
For older versions please refer to these articles
V2, V3 : http://lifeintwizy.blogspot.com/2016/04/axis-v2v3-installation-and-setup.html
V4.0, V4.1 : http://lifeintwizy.blogspot.com/2016/06/axis-windows-v40-and-v41-installation.html

1 Mounting :

1.1 Axis windows mounting video:

Watch this video and read the additional information below. The video shows the mounting of the version 2 and only presents the general  principle of mounting. Many details were changed with the changing versions.
Do not remove the protective sheets before the end.
Do not use an electric screwdriver.

1.2 Mounting of the door plate

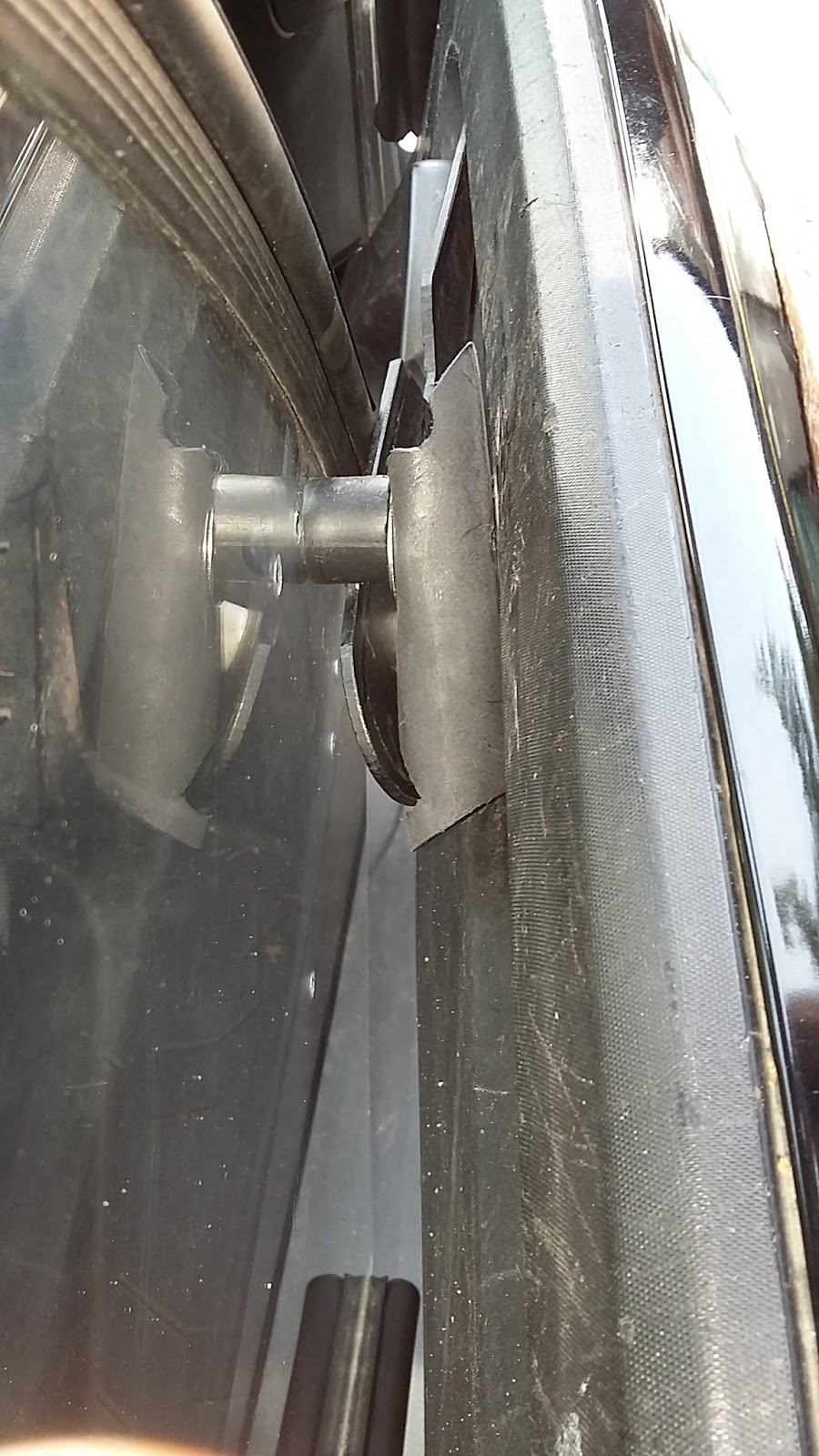

The door plate (3) is attached to the door with a dome head M6x40 screw (4), a spacer (2) and a large washer M6 (1).

Be careful in the direction of the plate.
Tighten firmly.

1.3 Mounting of the windows

Unscrew the original screws (Torx T30).

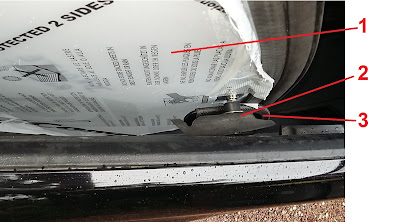

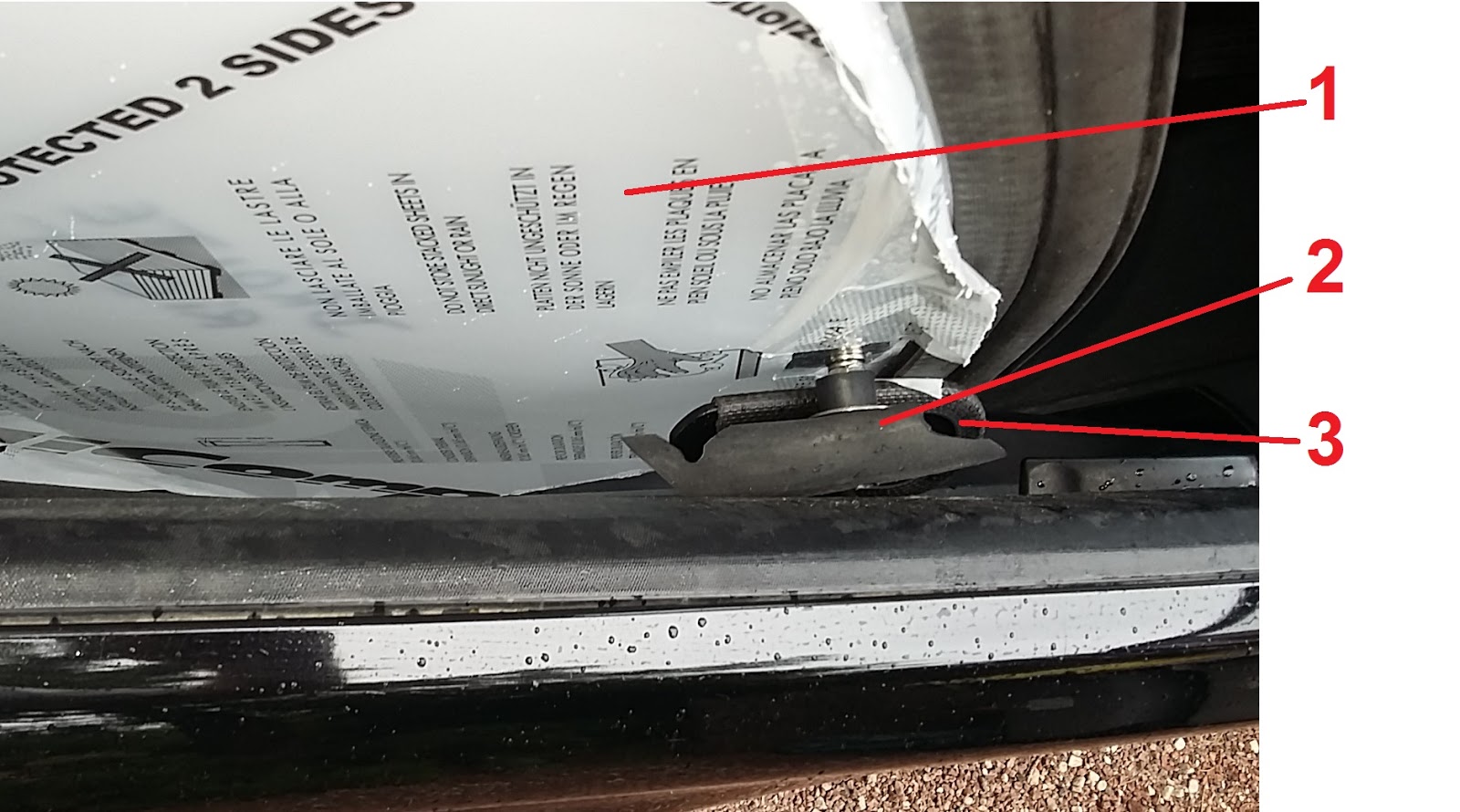

The rear part of the window is fixed to the door by two drilled rings (1) made of semi-rigid plastic by using the original screws (2).

Screw the rings against the door, taking care to their direction.

Insert into the small hole of the ring an M6x12 hex and toothed base screw (3).

Present the completely folded window and pass the screw (3) into the corresponding hole (4) .

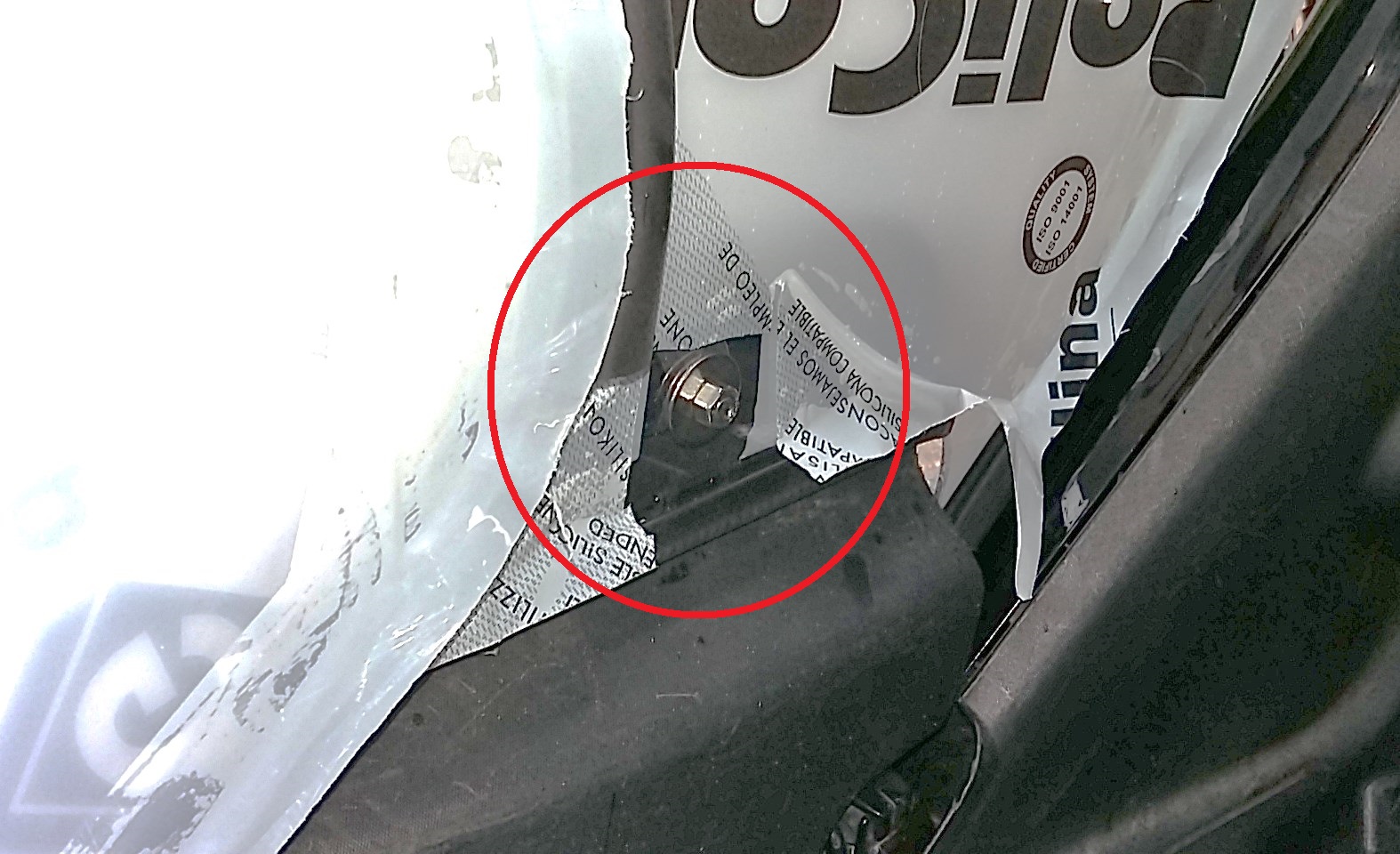

Place a large M6 washer and hand tighten a single nut M6 (not to lock nut)

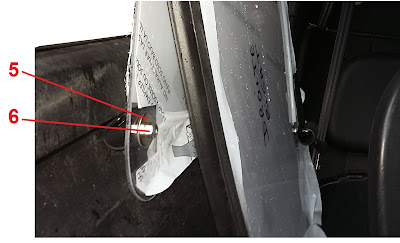

Deploy the window and block the outside handle (2) of the front part (1) against the door plate (3) to get a free access to the 2nd rear mounting ring .

Screw the rear part of the window on the second fixing ring, again with a single M6 washer and M6 nut.

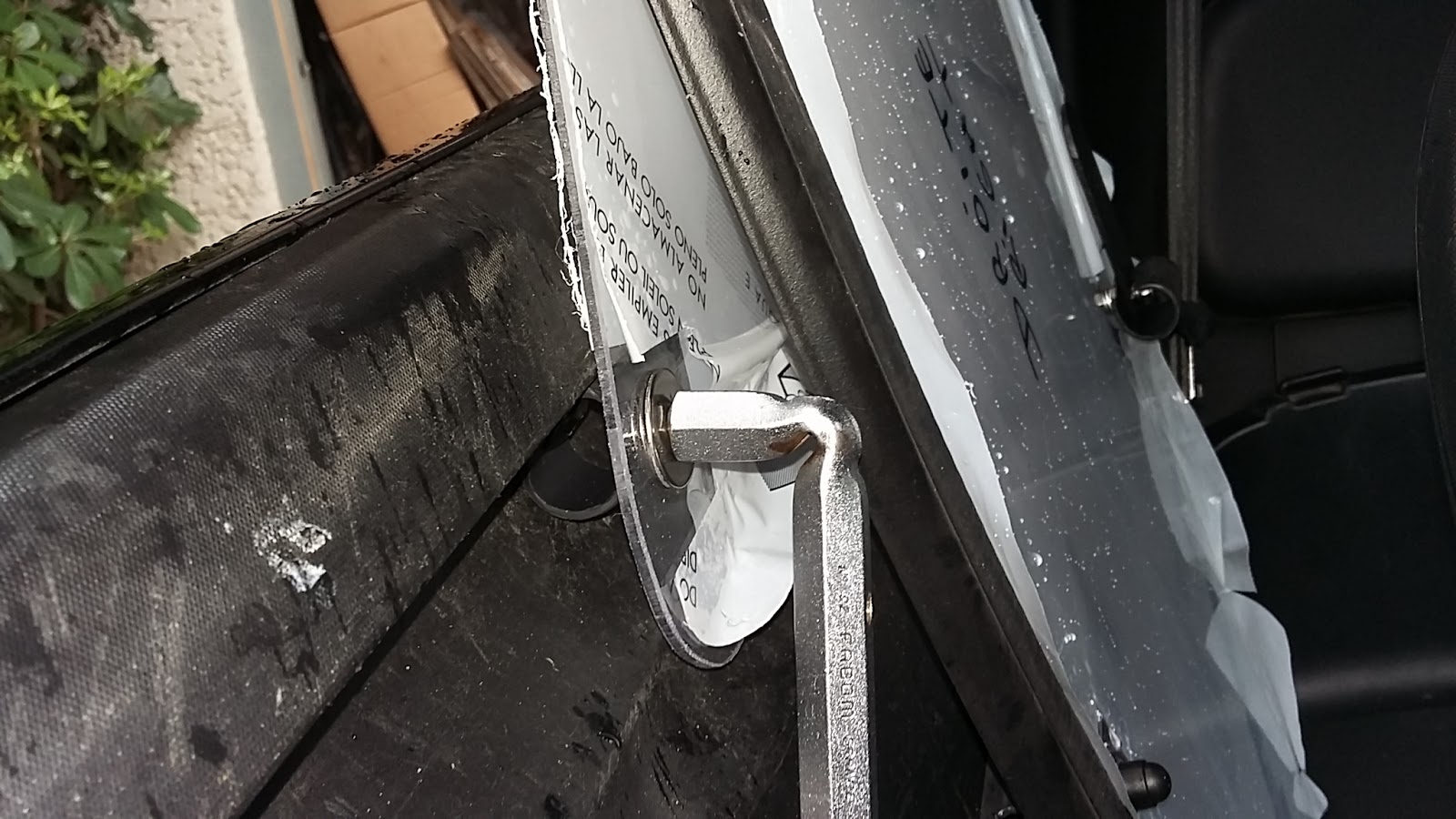

Tighten the nuts with the key strongly enough and place the nut covers.



1.4 Fitting the upper handle stop

A stop prevents the upper handle to slide because of the vibrations.

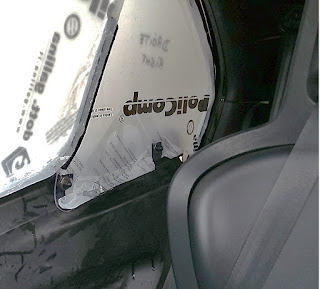

Move the stop wings and insert it against the roof.

1.5 Mounting the deflector wedge

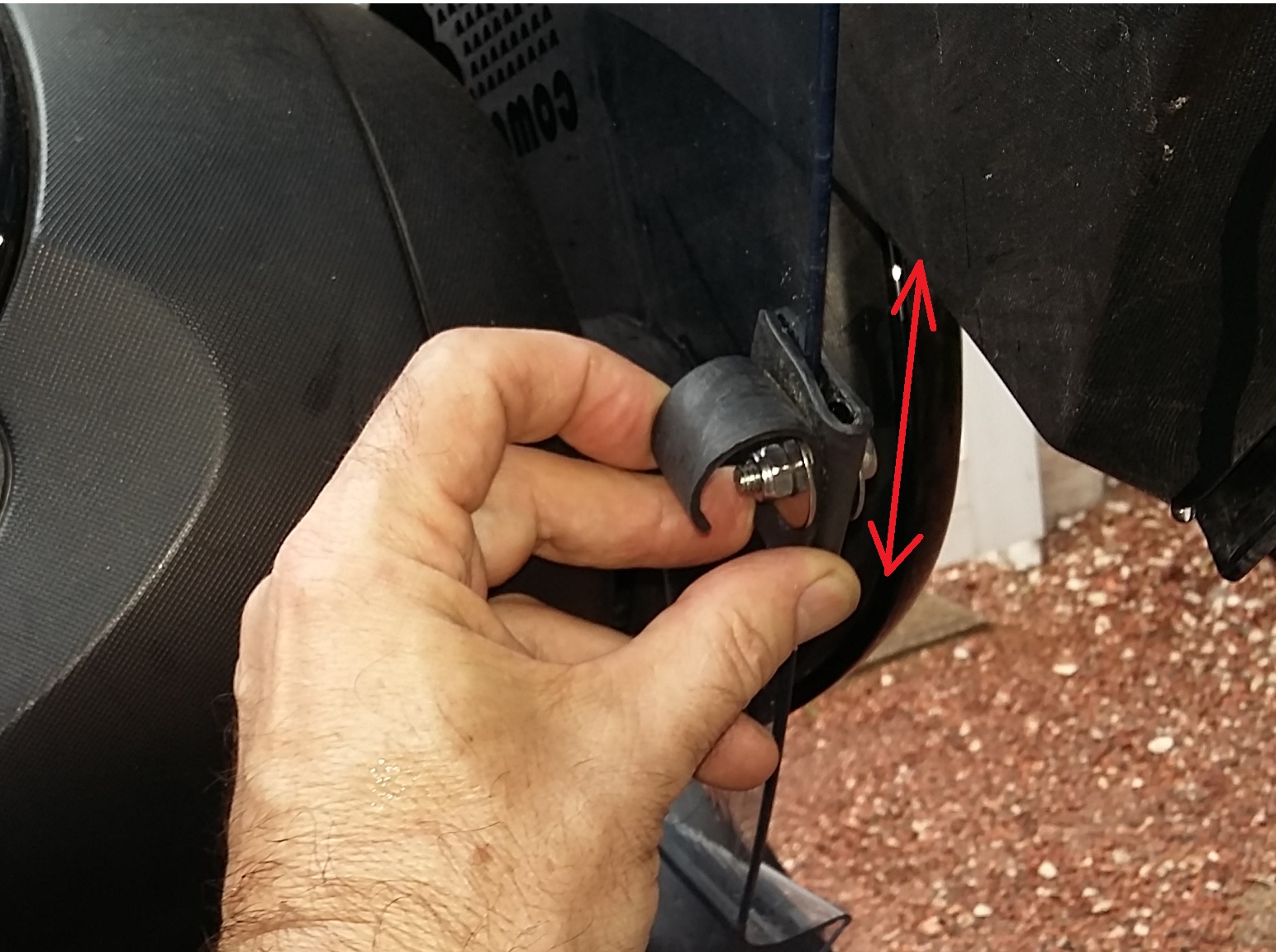

Insert the wedge on the deflector at a height approximately corresponding to the bottom of the front window when closed.

Note the direction of the wedge.

The setting and the final tightening will be done at the end of mounting.

2. Settings:

2.1 Setting the front outside handle:

Check the behavior of the outside handle.
In semi-open position, it must be clipped against the door plate so as not to escape if the door is opened.


The video below shows a good adjustment.

When the window is fully open and the door is opened, the outside handle must also come automatically become jammed against the door plate so as not to escape.


The video below shows a good adjustment.

If necessary adjust the rotation of the outside handle for proper operation. As it is firmly screwed to the assembly, it may be necessary to loosen a bit and then retighten after adjustment.

2.2 Adjusting the gasket support or the wedge :

The  wedge placed on the front defelector should be adjusted in height so that the front windows does not leave space at the top but also that closing the front window is not obstructed. The video below shows a good adjustment.

When a satisfactory adjustment is obtained, tighten the wedge very firmly.

2.3 Adjustment of the upper handle stop

Slide the stop so that it prevents the upper handle from sliding too easily.

The video below shows a good adjustment.

2.4 End settings

When the settings are done, remove the protective sheets.

3 Cleaning and maintenance

Axis windows are made of polycarbonate. This material scratches easily (less if treated anti-scratch).

Clean with soapy water and a very soft cloth.

Regularly check the settings.
